Rincian produk
Tempat asal: Buatan China
Nama merek: KBZE
Sertifikasi: ISO9001
Nomor model: Nomor telepon 8-94390451-0
Syarat Pembayaran & Pengiriman
Kuantitas min Order: Perintah percobaan yang dapat diterima
Harga: DIRECTLY FACTORY PRICE
Kemasan rincian: Tas PP & Kotak Karton
Waktu pengiriman: 3-5 HARI SETELAH PEMBAYARAN DITERIMA (HARI KERJA)
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 50000 SET/MINGGU
Bahan: |
Tabung baja tanpa jahitan |
Warna: |
Perak |
Kualitas: |
OEM |
Kondisi: |
100% Baru |
Fleksibilitas: |
pemasangan yang fleksibel dan mudah |
Aplikasi: |
Ekskavator Hitachi |
Daya tahan: |
Bertahan lama dan dapat diandalkan |
Kompatibilitas: |
ISUZU 6HK1 DFI |
Bahan: |
Tabung baja tanpa jahitan |
Warna: |
Perak |
Kualitas: |
OEM |
Kondisi: |
100% Baru |
Fleksibilitas: |
pemasangan yang fleksibel dan mudah |
Aplikasi: |
Ekskavator Hitachi |
Daya tahan: |
Bertahan lama dan dapat diandalkan |
Kompatibilitas: |
ISUZU 6HK1 DFI |
DESKRIPSI PRODUK
| Nama produk: |

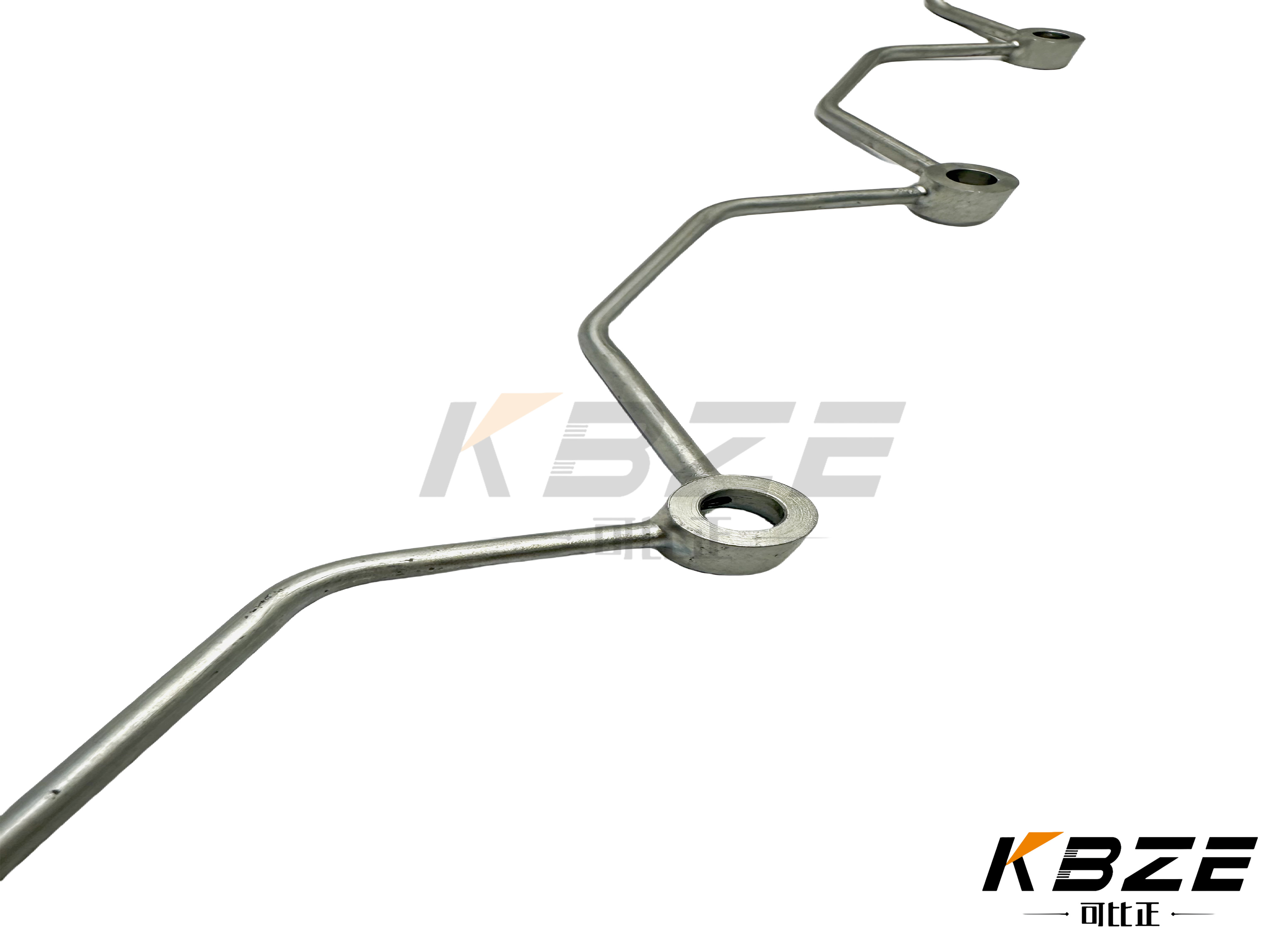

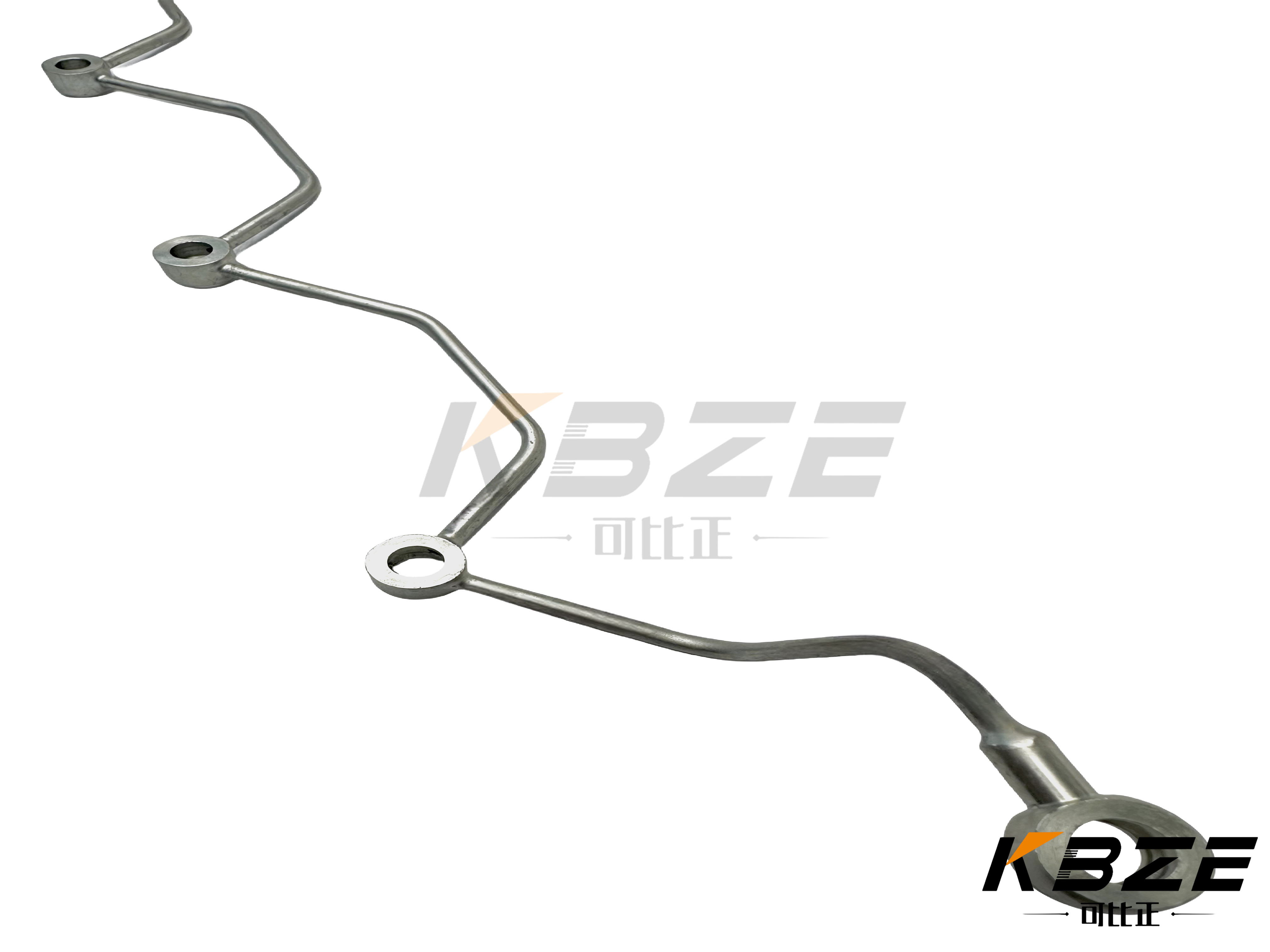

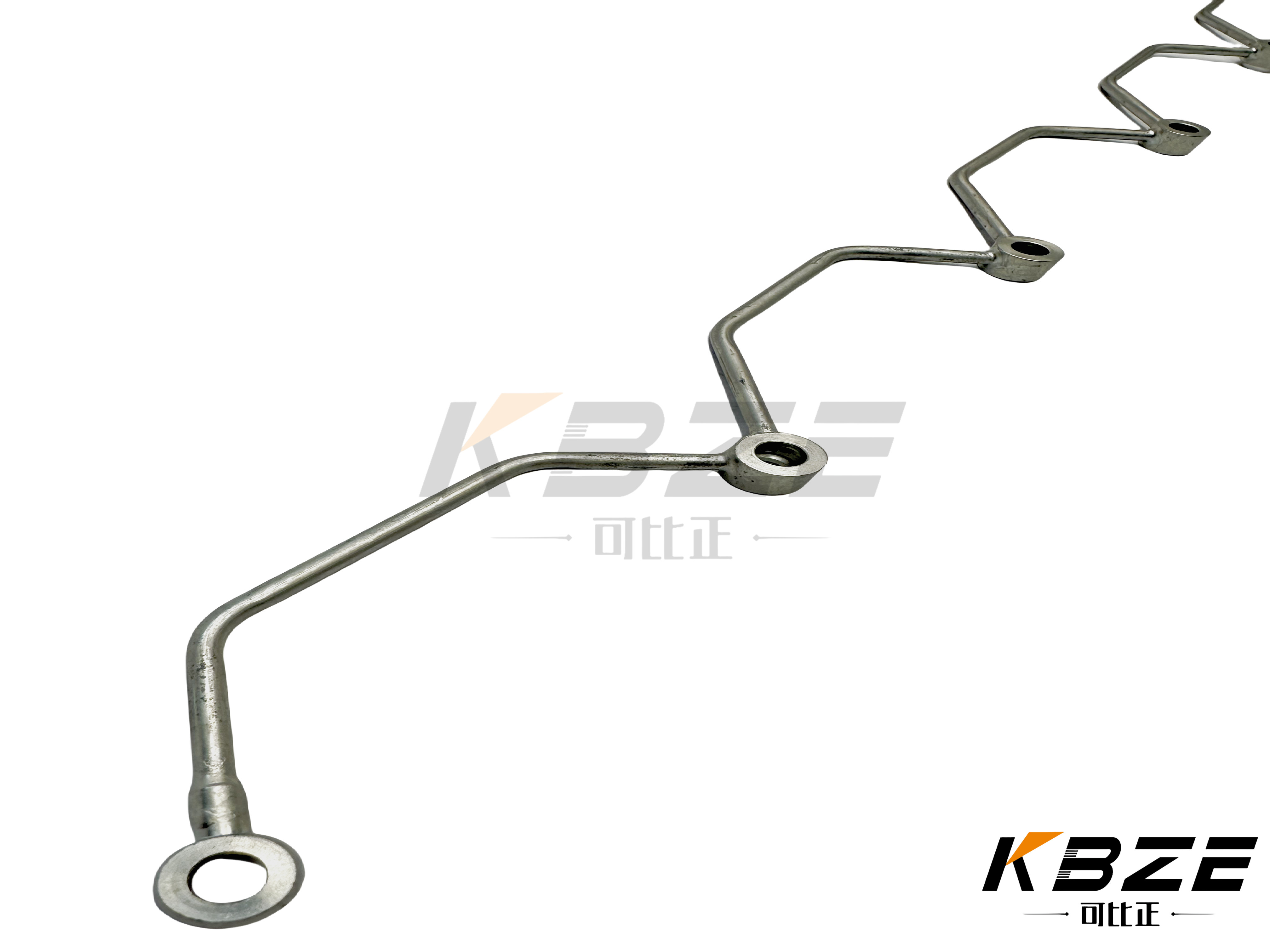

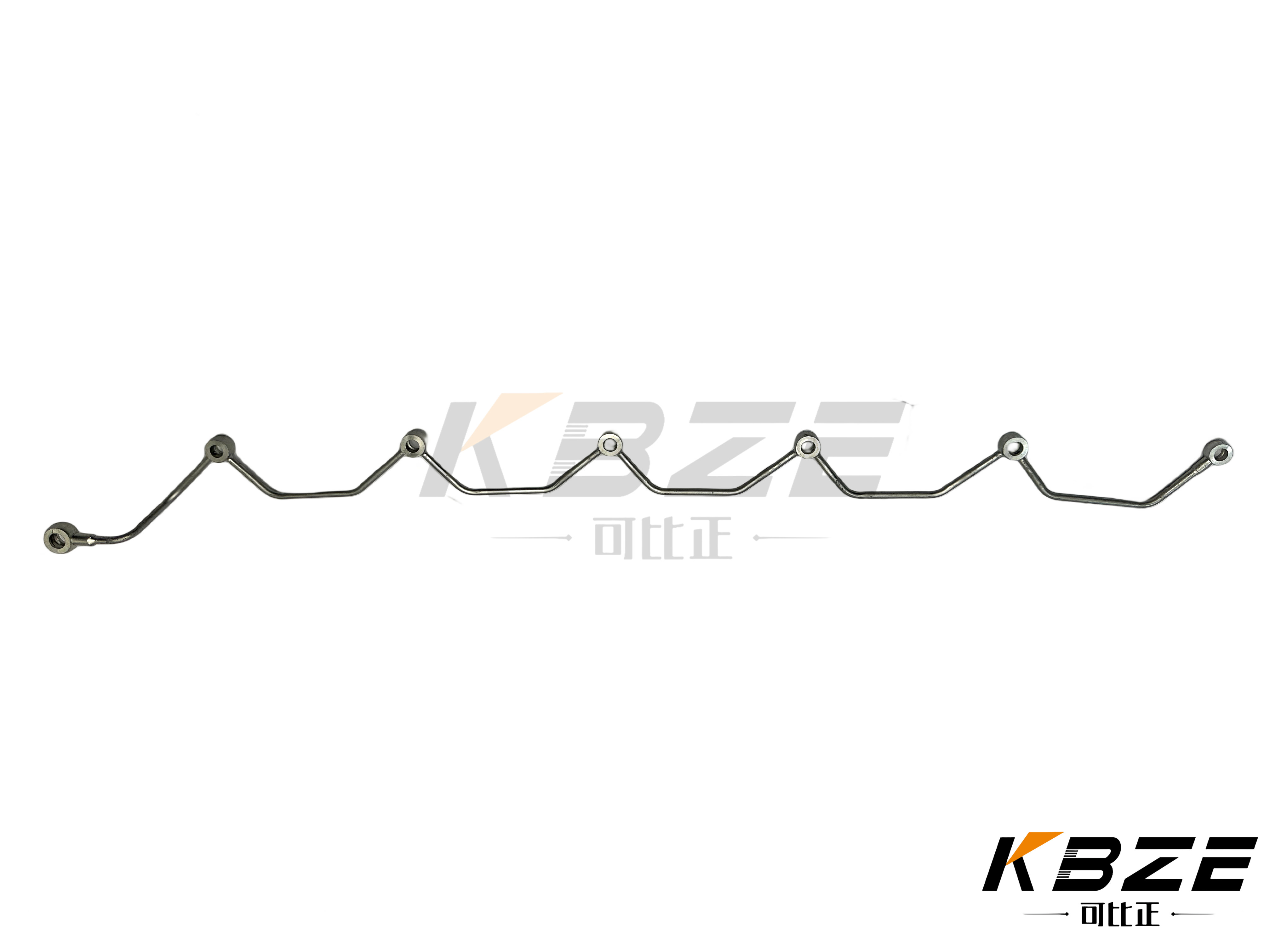

8-94390451-0 HITACHI ZAX330 ZAX350 INJEKTOR BBM pipa pengembalian minyak untuk ISUZU 6HK1 DFI MOTOR |
| Bagian NO: | 8-94390451-0 |
| Nama merek: | KBZE Injector Fuel Leak dari pipa |
| Mesin yang berlaku: |
ISUZU 6HK1 DFI Mesin Diesel |
| Ukuran: | Ukuran standar |
| MOQ: | Satu PCS |
| Tempat asal: | Dibuat di Cina |
| Kondisi: | 100% NEW Genuine |
| Disesuaikan: | OEM & ODM |
| Metode pengiriman: | AIR, SEA, FEDEX, DHL, UPS, EMS |
| Pelabuhan | Pelabuhan Cina |
| Model yang cocok: |
HITACHI EXCAVATOR |
Kami bisa menyediakan pipa bahan bakar lain
| 6207-51-8131 | 6735-51-8140 | 6745-51-8210 | VH241061440A |
| 5I-7556 | 1-13312346-2 | ME088549 | ME047853 |
| 6205-51-8130 | 32F61-06700 | 39601-E0150 | 6738-81-8410 |
| 51-7688 | 8-94394193-0 | 6743-71-5110 | 8-97232957-0 |
| 8-98038775-0 | 8-97124234-0 | 8-98008791-0 | 6156-71-5611 |
| ME440239 | ME440842 | ME07857 | VH23816E0100 |
| ME078560 | ME19G05-17018 | 1-13314016-0 | 6732-715411 |
| VH2378-32710 | VHS166913730 | VHS166913740 | VH21576E0020 |
| 34336-10901 | VH16322E140 | VH16332E0100 | VH23816E0080 |
| VH237832720A | VH166913766A | VH166913770A | VH166913750AUSI |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| 1 | 1156033342 | [1] | Pump ASM; INJ | Lihat FIG-NO 0-80 - 0-85 untuk komponen. |
| 2 | 281810800 | [4] | BOLT; INJ PUMP | M10X80 FLANGE |
| 2 | 281510800 | [4] | BOLT; INJ PUMP | M10X80 FLANGE |
| 6 | 8943904830 | [1] | BRACKET; INJ PUMP TO C/BL | |
| 7 | 281810400 | [2] | BOLT; INJ PUMP BRKT | M10X40 FLANGE |
| 7 | 281810800 | [3] | BOLT; INJ PUMP BRKT | M10X80 FLANGE |
| 7 | 281510400 | [2] | BOLT; INJ PUMP BRKT | M10X40 FLANGE |
| 7 | 281510800 | [3] | BOLT; INJ PUMP BRKT | M10X80 FLANGE |
| 10 | 9197590191 | [2] | DOWEL; INJ PUMP | |
| 15 | 8943964831 | [1] | ASM Kopling; INJ PUMP | |
| 16 | 1154166170 | [1] | PIPE; INJ NO.1 | |
| 17 | 1154164660 | [1] | PIPE; INJ NO.2 | |
| 18 | 1154166180 | [1] | PIPE; INJ NO.3 | |
| 19 | 1154164681 | [1] | PIPE; INJ NO.4 | |
| 20 | 1154164691 | [1] | pipa; INJ NO 5 | |
| 21 | 1154164700 | [1] | pipa; INJ NO 6 | |
| 31 | 1153003891 | [6] | NOZZLE ASM; INJ | |
| 32 | 8943922032 | [1] | Pemegang ASM; NOZZLE | |
| 35 | 1153491420 | [6] | NUT; NOZZLE RET, NOZZLE HOLDER | |
| 42 | 9095611120 | [6] | GASKET; INL CONNECTOR, pemegang nozzle | |
| 043 (A). | 1153420020 | [6] | SEAT; NOZZLE SPRING, pemegang NOZZLE | |
| 043 (B). | 1153420030 | [6] | SEAT; NOZZLE SPRING, pemegang NOZZLE | |
| 44 | 1153430050 | [6] | SPRING; NOZZLE,HOLDER NOZZLE | |
| 45 | 1153491290 | [6] | Rod; PUSH, NOZZLE HOLDER | |
| 47 | 1153491570 | [6] | SPACEER; NOZZLE SPRING, pemegang NOZZLE | |
| 66 | 1153150131 | [6] | GASKET; NOZZLE INJ | ID = 9,2 T = 8.1 Juga termasuk dalam GASKET SET |
| 66 | 8976014472 | [6] | GASKET; NOZZLE INJ | ID = 9,2 T = 8.1 Juga termasuk dalam GASKET SET |
| 66 | 8980792480 | [6] | GASKET; NOZZLE INJ | ID = 9,2 T = 8.1 Juga termasuk dalam GASKET SET |
| 69 | 1154195830 | [1] | BRACKET; INJ PIPE CLIP | |
| 70 | 916105100 | [2] | WASHER; LK,BRKT | ID = 10.5 |
| 71 | 280808160 | [1] | BOLT; BRKT | Flang M8X16 |
| 71 | 280508160 | [1] | BOLT; BRKT | M8X16 FLANGE |
| 94 | 8943909880 | [6] | BRACKET; INJ NOZZLE | A |
| 94 | 8973060741 | [6] | BRACKET; INJ NOZZLE | |
| 94 | 8980289991 | [6] | BRACKET; INJ NOZZLE | |
| 107 | 911501060 | [6] | NUT; INJ PIPE CLIP | Flang M6 |
| 107 | 911801060 | [6] | NUT; INJ PIPE CLIP | M6 FLANGE |
| 110 | 911501060 | [2] | NUT; CLIP | M6 FLANGE |
| 110 | 911501060 | [1] | NUT; CLIP | Flang M6 |
| 110 | 911801060 | [1] | NUT; CLIP | M6 FLANGE |
| 113 | 1097011321 | [12] | Klip; INJ pipa | |
| 121 | 5154112231 | [1] | Pipa; bahan bakar,sumber pakan,seksi | |
| 121 | 5154112231 | [2] | Pipa; bahan bakar,sumber pakan,seksi | |
| 122 | 1097011321 | [4] | Klip; kebocoran dari pipa | |
| 122 | 1097011321 | [2] | Klip; kebocoran dari pipa | |
| 124 (a). | 8943967110 | [2] | Bolt; mata kebocoran dari pipa | M10X21 FLANGE |
| 124 (B). | 1096750371 | [1] | Bolt; mata kebocoran dari pipa | M8X18 FLANGE |
| 126 (a). | 1096300820 | [1] | GASKET; EYE BOLT bocor dari pipa | ID = 8,2 OD = 13.2 Juga termasuk dalam GASKET SET |
| 126 (B). | 1096300830 | [4] | GASKET; EYE BOLT bocor dari pipa | ID = 10.2 Juga termasuk dalam GASKET SET |
| 126 (B). | 1096300830 | [2] | GASKET; EYE BOLT bocor dari pipa | ID = 10.2 Juga termasuk dalam GASKET SET |
| 126 ((C). | 8972409750 | [1] | GASKET; EYE BOLT bocor dari pipa | ID = 10.6 Juga termasuk dalam GASKET SET |
| 128 | 1154165250 | [1] | PIPE ASM; INJ | |
| 130 | 1154195940 | [1] | BRACKET; Overflow untuk bocor | |
| 130 | 1154195940 | [1] | BRACKET; Overflow untuk bocor | |
| 134 | 1096750371 | [6] | Bolt, joint, bocor dari pipa | |
| 135 (a). | 8976009250 | [6] | GASKET; JOINT BOLT,LECK OFF pipa | ID = 8.3 Juga termasuk dalam GASKET SET |
| 135 (a). | 8980659920 | [6] | GASKET; JOINT BOLT,LECK OFF pipa | ID = 8.3 Juga termasuk dalam GASKET SET |
| 135 (B). | 8980797550 | [1] | GASKET; JOINT BOLT,LECK OFF pipa | ID=10,2 OD=17 Juga termasuk dalam GASKET SET |
| 137 | 8943904510 | [1] | ASM pipa; kebocoran | |
| 138 | 1153430060 | [6] | SPRING; NOZZLE LWR,HOLDER NOZZLE | |
| 140 (a). | 1153491120 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.40 | |
| 140 (a). | 1153491130 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.50 | |
| 140 (a). | 1153491140 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.52 | |
| 140 (a). | 1153491150 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.54 | |
| 140 (a). | 1153491160 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.56 | |
| 140 (a). | 1153491170 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.58 | |
| 140 (a). | 1153491180 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.60 | |
| 140 (a). | 1153491190 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.70 | |
| 140 (B). | 1153491200 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.40 | |
| 140 (B). | 1153491210 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.50 | |
| 140 (B). | 1153491220 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.52 | |
| 140 (B). | 1153491230 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.54 | |
| 140 (B). | 1153491240 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.56 | |
| 140 (B). | 1153491250 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.58 | |
| 140 (B). | 1153491260 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.60 | |
| 140 (B). | 1153491270 | SHIM; NOZZLE SPRING, pemegang NOZZLE | T=0.70 | |
| 145 | 8941734120 | [6] | GASKET; RET NUT | |
| 169 | 911501100 | [2] | NUT; BRKT | M10 FLANGE |
| 169 | 911801100 | [2] | NUT; BRKT | M10 FLANGE |
| 184 | 8943909891 | [6] | BOLT; pemegang nozzle | |
| 184 | 8980088950 | [6] | BOLT; pemegang nozzle | |
| 199 | 1096300850 | [2] | GASKET; BOLT mata | ID=14.2 OD=19.2 Juga termasuk dalam GASKET SET (mesin) |
| 216 | 1096750630 | [1] | Bolt; mata | |
| 272 | 1153190260 | [6] | KIT NOZZLE; INJ |
