Rincian produk
Tempat asal: Buatan China
Nama merek: KBZE
Sertifikasi: ISO9001
Nomor model: 212-8501 / 212-8496 / 217-5428
Syarat Pembayaran & Pengiriman
Kuantitas min Order: Perintah percobaan yang dapat diterima
Harga: DIRECTLY FACTORY PRICE
Kemasan rincian: Tas PP & Kotak Karton
Waktu pengiriman: 3-5 HARI SETELAH PEMBAYARAN DITERIMA (HARI KERJA)
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 50000 SET/MINGGU
Bahan: |
Tabung |
Warna: |
Hitam |
Kualitas: |
OEM |
Kondisi: |
100% Baru |
Fleksibilitas: |
pemasangan yang fleksibel dan mudah |
Aplikasi: |
311C, 312C, 312C L, 314C, 318C, 319C, 320C |
Daya tahan: |
Bertahan lama dan dapat diandalkan |
Kompatibilitas: |
MESIN MITSUBISHI S4K |
Bahan: |
Tabung |
Warna: |
Hitam |
Kualitas: |
OEM |
Kondisi: |
100% Baru |
Fleksibilitas: |
pemasangan yang fleksibel dan mudah |
Aplikasi: |
311C, 312C, 312C L, 314C, 318C, 319C, 320C |
Daya tahan: |
Bertahan lama dan dapat diandalkan |
Kompatibilitas: |
MESIN MITSUBISHI S4K |
DESKRIPSI PRODUK

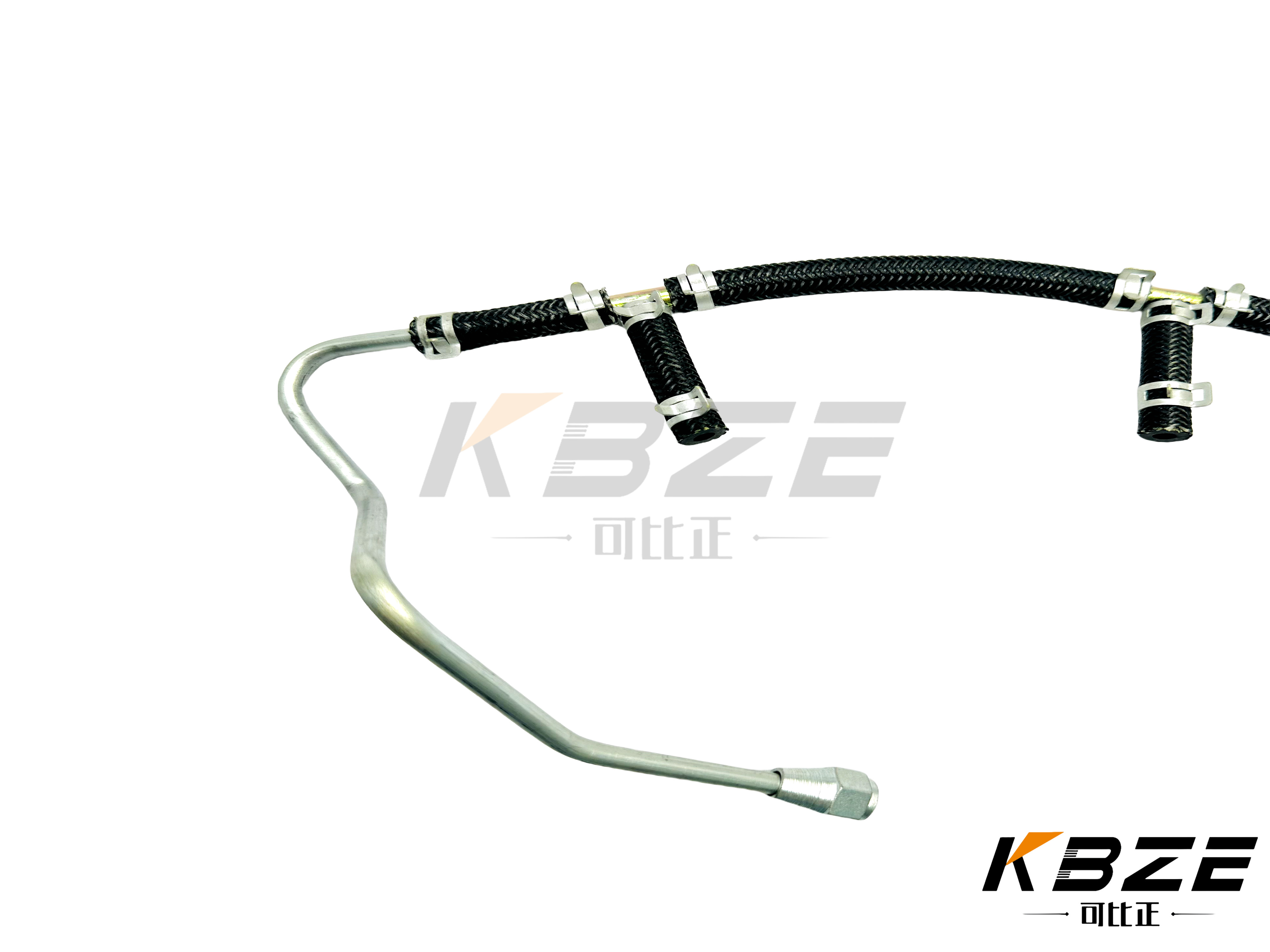

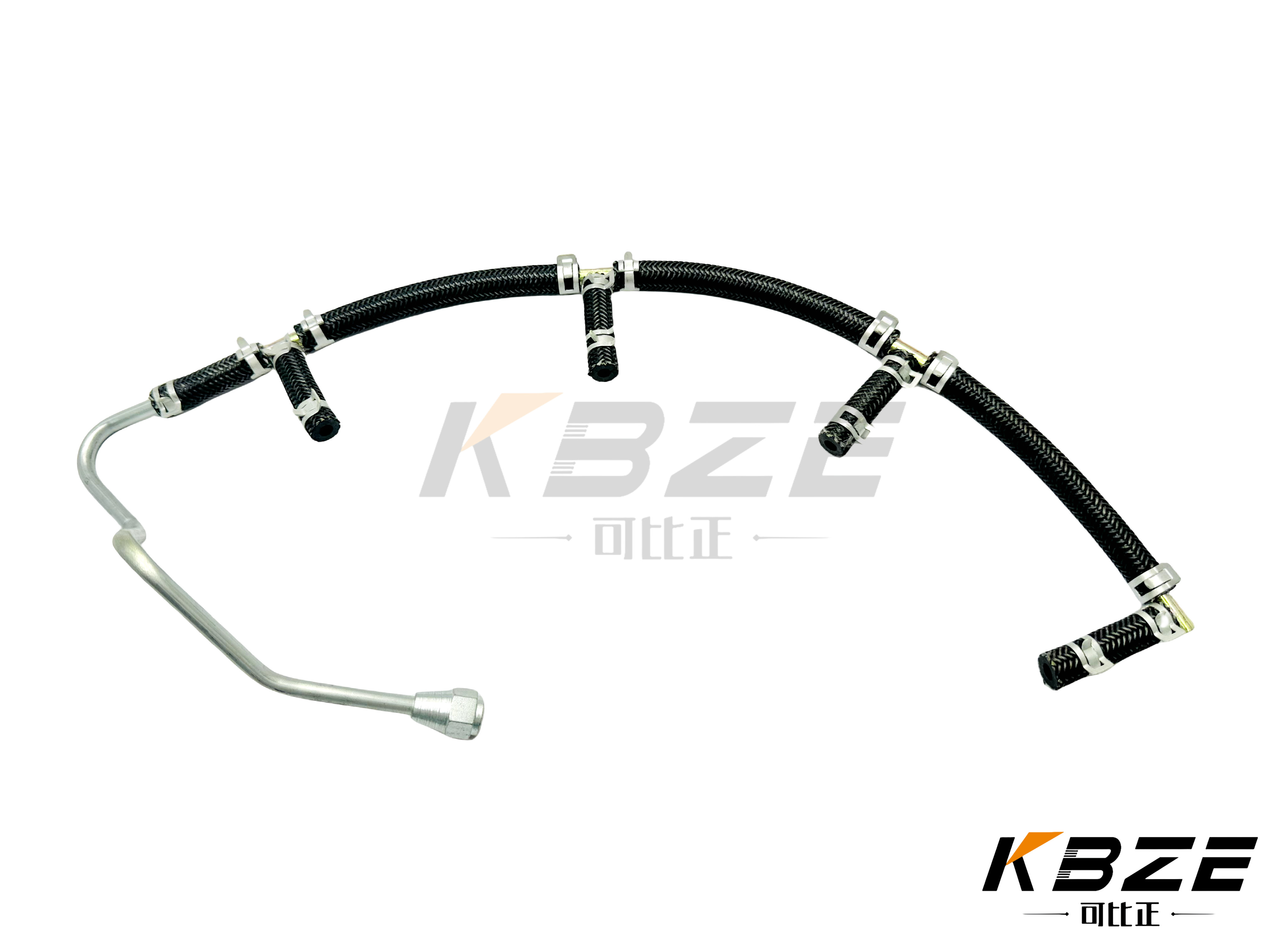

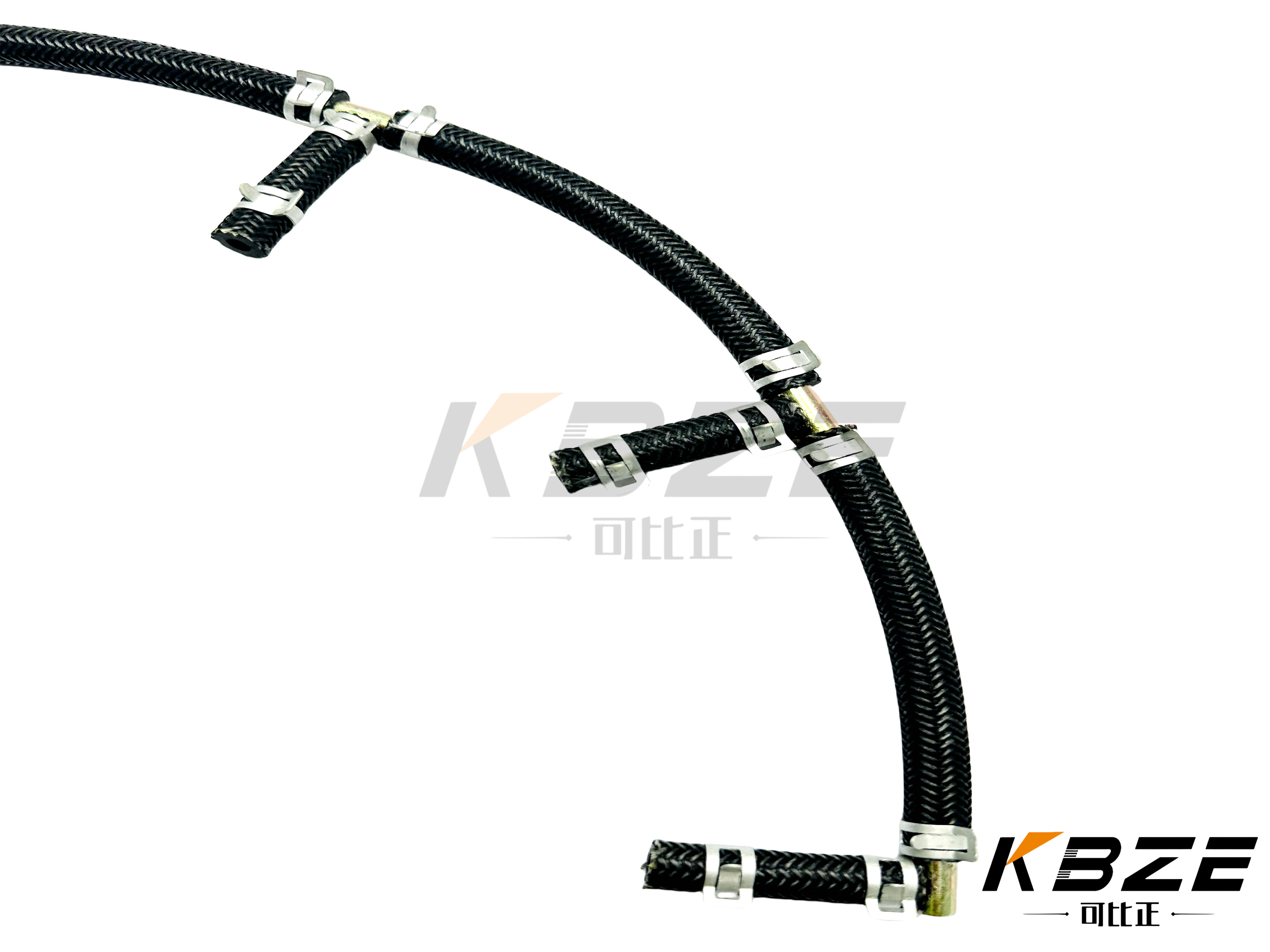

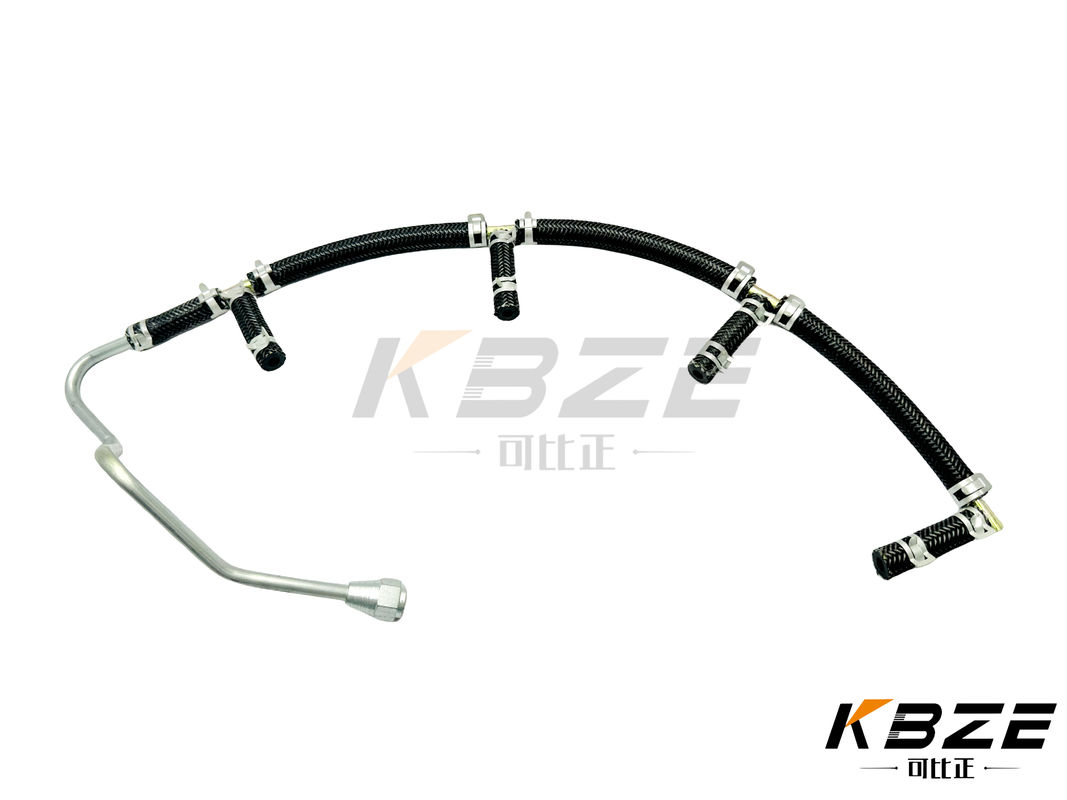

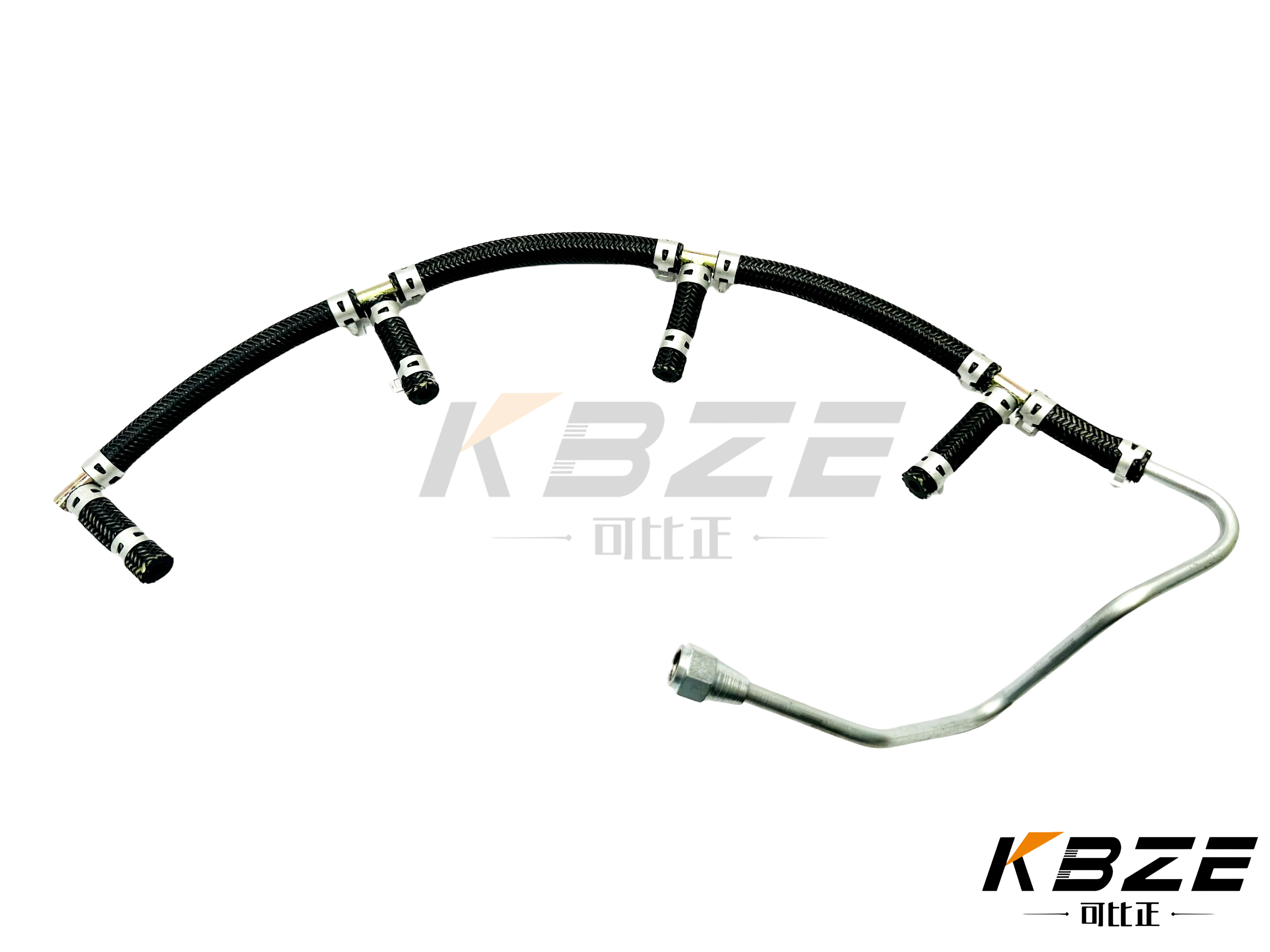

| Nama produk: | Kualitas tinggi 212-8501 / 212-8496 / 217-5428 CAT S4K Mesin Injektor bahan bakar pipa pengembalian minyak |
| Bagian NO: | 212-8501 / 212-8496 / 217-5428 |
| Nama merek: | KBZE INJECTOR OIL RETURN PIPE |
| Mesin yang berlaku: |
Mitsubishi S4K |
| Ukuran: | Ukuran standar |
| MOQ: | Satu PCS |
| Tempat asal: | Dibuat di Cina |
| Kondisi: | 100% NEW Genuine |
| Disesuaikan: | OEM & ODM |
| Metode pengiriman: | AIR, SEA, FEDEX, DHL, UPS, EMS |
| Pelabuhan | Pelabuhan NANSHA |
| Model yang cocok: |
CATERPILLAR |
Kami bisa menyediakan pipa bahan bakar lain
|
ME204196 |
ME202868 | 65.0701-6542 | 65.5701-5343 |
| 65.0701-5453 | 420217-00288 | 4202H-00149 | 65.05701-5442 |
| 15194680 | 17204704 | 34233-01400 | 32E-01100 |
| 32R33-00100 | 3282159 | 6151-51-8242 | 8-97222120-1 |
| 8-97238940-0 | 1-3313697-0 | 8-98258068-0 | 8-98258067-0 |
| 1-13313889-0 | 3584A001 | T413975 | ME108172 |
| 1-13314061-0 | 1G934-33052 | 6240-51-8280 | 6219-51-8120 |
| 6219-51-8110 | 6271-71-5210 | 6754-71-5130 | 4933417 |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| 1 | 1R-6573 | [6] | GASKET | |
| 2 | 113-0363 | [6] | Dukungan | |
| 3 | 154-0489 | [6] | SEAL-RUBER | |
| 4 | 8T-4189 M | [6] | BOLT (M8X1.25X20-MM) | |
| 5 | 217-5421 | [1] | PIPE | |
| 6 | 217-5422 | [1] | PIPE | |
| 7 | 217-5423 | [1] | PIPE | |
| 8 | 217-5424 | [1] | PIPE | |
| 9 | 217-5425 | [1] | PIPE | |
| 10 | 217-5426 | [1] | PIPE | |
| 11 | 212-8501 | [1] | LINE AS-FUEL | |
| 12 | 094-9596 | [3] | Clamp | |
| 13 | 094-9597 | [3] | Clamp | |
| 14 | 5C-9553 M | [3] | Bolt (M6X1X16-MM) | |
| 15 | 094-9581 | [6] | Clamp | |
| 16 | 6V-7357 M | [3] | Bolt (M6X1X25-MM) | |
| 18 | 7X-0796 | [5] | PENGEMAS KELUAR | |
| 19 | 8T-4121 | [4] | WASHER-HARD (11X21X2.5-MM THK) | |
| 20 | 193-2702 | [1] | PIPE | |
| 21 | 5I-7576 | [1] | Flang | |
| 22 | 096-9529 | [1] | SEAL-O-RING | |
| 23 | 5I-7743 | [1] | FITING | |
| 24 | 125-2983 | [1] | FITING | |
| 25 | 8T-4196 M | [4] | BOLT (M10X1.5X35-MM) | |
| 26 | 5I-5108 M | [2] | BOLT (M8X1.25X18-MM) | |
| 27 | 212-8509 | [1] | BRACKET | |
| 28 | 8T-4179 M | [1] | BOLT (M12X1.75X20-MM) | |
| 29 | 6V-8231 M | [1] | NUT (M10X1.25-THD) | |
| 30 | 096-2501 | [1] | PENGEMAS KELUAR | |
| 31 | 5I-8070 | [1] | PIPE | |
| 32 | 5I-8058 | [1] | Konektor | |
| 33 | 3B-4505 | [8] | PENGEMAS KELUAR | |
| 34 | 096-2500 | [1] | PENGEMAS KELUAR | |
| 35 | 7X-2536 M | [1] | BOLT (M8X1.25X14-MM) | |
| 36 | 217-5428 | [1] | Selang AS | |
| 37 | 094-7235 | [1] | PDB | |
| 38 | 096-0174 | [3] | Clip-HOSE | |
| 39 | 195-8366 | [2] | FITING | |
| 40 | 195-8368 | [6] | Selang | |
| 41 | 195-8369 | [4] | FITING | |
| 42 | 195-8372 | [22] | CLIP | |
| 43 | 212-8497 | [4] | Selang | |
| 44 | 212-8498 | [1] | Selang | |
| 45 | 212-8607 | [1] | Selang |
